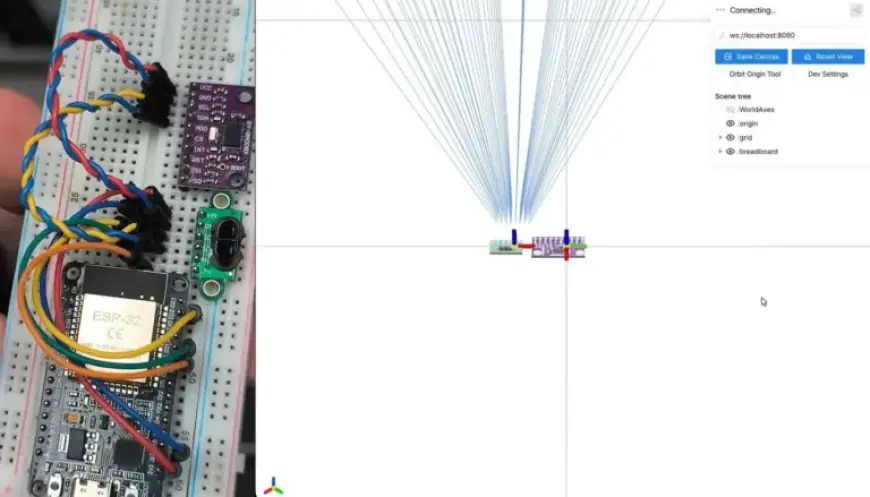

ESP32 Powers Real-Time 3D Room Mapping with VL53L5CX Sensor and IMU
The VL53L5CX sensor is a compact device designed for advanced distance measurements. With an 8×8 grid layout, it can accurately detect distances up to 4 meters. Recent demonstrations showcase its capabilities in real-time 3D room mapping.
VL53L5CX: Advanced Features for 3D Mapping
This innovative sensor pairs seamlessly with an Inertial Measurement Unit (IMU) to enhance mapping accuracy. The IMU provides crucial orientation data, ensuring that scanned room information is reliably integrated.
Integration with ESP32 for Data Processing
The ESP32 microcontroller units (MCUs) play a vital role in this 3D mapping setup. It processes data from the VL53L5CX and IMU, subsequently streaming the results as JSON to a connected computer.
Key aspects of this implementation include:
- Real-time data streaming
- Noise filtering techniques
- Orientation tracking using the IMU
- Various plane fitting algorithms for enhanced accuracy
Comparative Sensor Capabilities
STMicroelectronics offers a range of Time-of-Flight sensors. The VL53L5CX is notably more advanced than its predecessor, the VL53VL0X, which is limited to a distance of just 2 meters. Essential features of the VL53L5CX include:
- 4-meter distance range
- 60 Hz sampling rate
- Multizone array for precise measurements
Resources and Community Support
Developers interested in exploring the capabilities of the VL53L5CX can access a Python-based viewer. This software, available on GitHub, supports the processing and visualization of data. Additionally, firmware for the ESP32 is also provided to facilitate easy integration.
As the demand for sophisticated mapping solutions grows, the VL53L5CX sensor stands out for real-time 3D room mapping applications, offering significant advantages in accuracy and functionality.
