Create Your Own SD Card for Microcontroller Projects
If you’re working on microcontroller projects, integrating storage is essential. SD cards are a popular choice due to their affordability, durability, and ease of use. However, there are alternatives worth considering.
Create Your Own SD Card for Microcontroller Projects
One innovative solution is the cardless SD card chip, specifically the XTXD0*G series. This series features NAND flash chips that can serve as direct replacements for standard SD cards without the need for a physical card. This approach simplifies your project’s design and reduces costs associated with traditional SD card readers.
Benefits of Using XTXD0*G Series Chips
- Cost-effective: Eliminates the need for an SD card reader.
- Compatible: Works with existing SD card access libraries.
- Flexible: Can be used on a custom breakout board or in a laptop’s card reader.

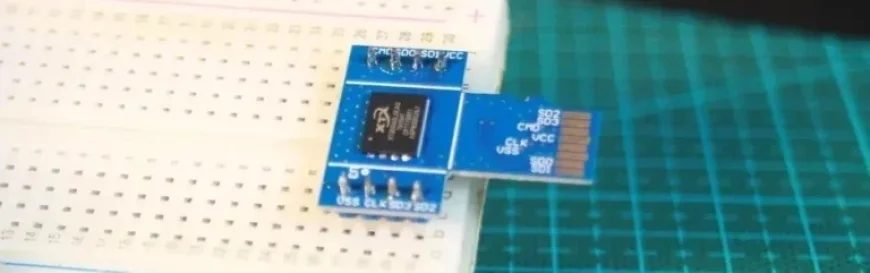

Chris, a notable DIY enthusiast, demonstrated this concept in a detailed Instructable. By using the 4 Gbit chip, the XTSD04GLGEAG, he created a breakout board that easily connects to various setups.
Custom Breakout Board Design

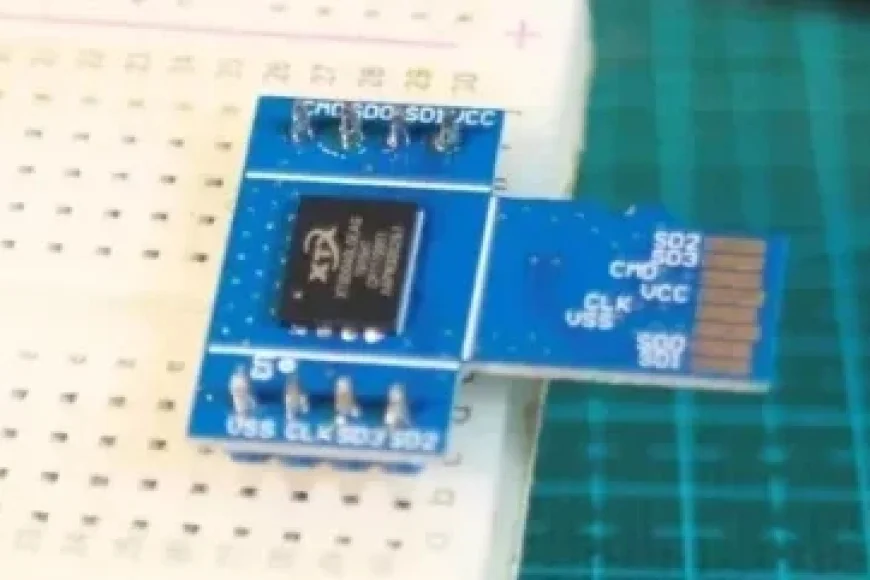

To connect the board to a breadboard, standard 2.54 mm headers are utilized. If you choose to integrate the chip into a card reader, you’ll need to ensure the PCB is shaped appropriately. Chris recommends a thickness of 0.6 mm for proper insertion into devices designed for micro SD cards.
Exploring Other Options
While chip-based solutions offer flexibility, there are still traditional SD card options available for those preferring a physical component. DIY enthusiasts can also construct their SD card slots if desired.
In conclusion, utilizing NAND flash chips like the XTXD0*G series can enhance your microcontroller projects significantly. By integrating these chips, you can streamline design, reduce costs, and maintain compatibility with existing systems.
